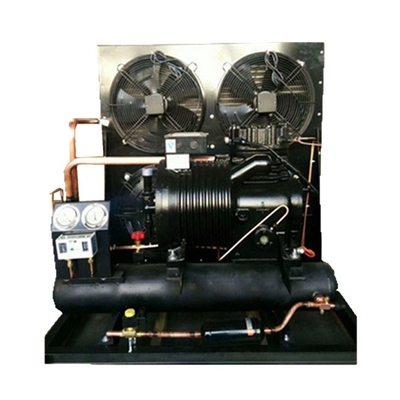

Name: Air Cooled Refrigeration Parts 15HP Condensing Unit With Semi-Hermetic Compressor 4VS-1500
Brand: Air Cooled Refrigeration Parts 15HP Condensing Unit With Semi-Hermetic Compressor 4VS-1500
SKU: 4VS-1500
Price: 1 USD
Availability: InStock
Rating: 4.5 (142 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Condition: New

Applicable Industries: Retail

Showroom Location: None

Video outgoing-inspection: Not Available

Machinery Test Report: Not Available

Marketing Type: Hot Product 2019

Type: Refrigeration Compressor

Application: Refrigeration Parts

Warranty: 1 Year

condensing unit: air cooled condensing unit

Condensing Temperature: 30-50â„ƒ

Color: black

Max. pressure difference: 1.83Mpa

Max. Copression Ratio: 18

Max. Discharge Temperature: 135â„ƒ

Max Oil Temperature: 80â„ƒ

Usage: Cold room

horse power: 15HP

model: 4VS-1500

After Warranty Service: Online support

Local ServiceÂ Location: None

Certification: ce

After-sales Service Provided: No after-sales service

Informations de base

Certification: ce

Model Number: 4VS-1500

Conditions de paiement et expédition

Packaging Details: PALLET

Supply Ability: 1000 Unit/Units per Month

Description de produit

Product Description

Air-cooled features:

1.Compact structure, stable operation, low vibration, low noise, light aluminum piston reduce the friction and vibration

2.Easy to dismantle and assemble, easy to be well maintained.

3.Concealed & electronic Motorschutz, high electronic protection technique guarantee the motor quality

4.Large oil charge and special designed oil recycle system make sure bearing’s lubrication.

5.No leaking in refrigerant and oil.

Application Range

Item Refrigerant	R22		R134a	R404a	R407a	R407a	R407c
Evaporating Temperature	-40~+12.5°C		-20~+12.5°C	-40~+10°C	-40~-10°C	-40~-10°C	-30~+10°C
Condensing Temperature	30~45°C ( Water-Cooling ) 30~50°C ( Air-Cooling )
Max.Pressure Difference	1.83Mpa
Max. Compression Ratio	18
Max.Discharge temperature	135°C ( Surface of Exhaust Pipe )
Suction Superheat	Min.:10°C Max.: Make sure the Max. Superheat when lower than Exhaust Temperature 135°C
Max.Oil Temperature	80°C
Power Supply	3Ph 380/440V 50/60Hz
Motor Temperature	Lower 105 °C
Refrigeration Oil	SUNISO 3GS	SUNISO SL32S
Max.Ambient Temperature	43°C

Model	Outline Dimension (mm)			Installation Size (mm)
Model	A/Length	B/Width	C/Height	D/Length	E/Width
2CS-500	950	800	800	640	490
2CS-800	1270	900	1100	990	790
2CS-1000	1270	900	1100	1230	790
3CS-1500	1470	1020	1020	1420	840

Packaging & Shipping

Packing: PALLET, wooden case or with outer carton, or as per customers' specific requirements.

Shipping: Sample By Express (DHL /UPS /TNT /FedEx /EMS), By Air, Mass products By Sea.
